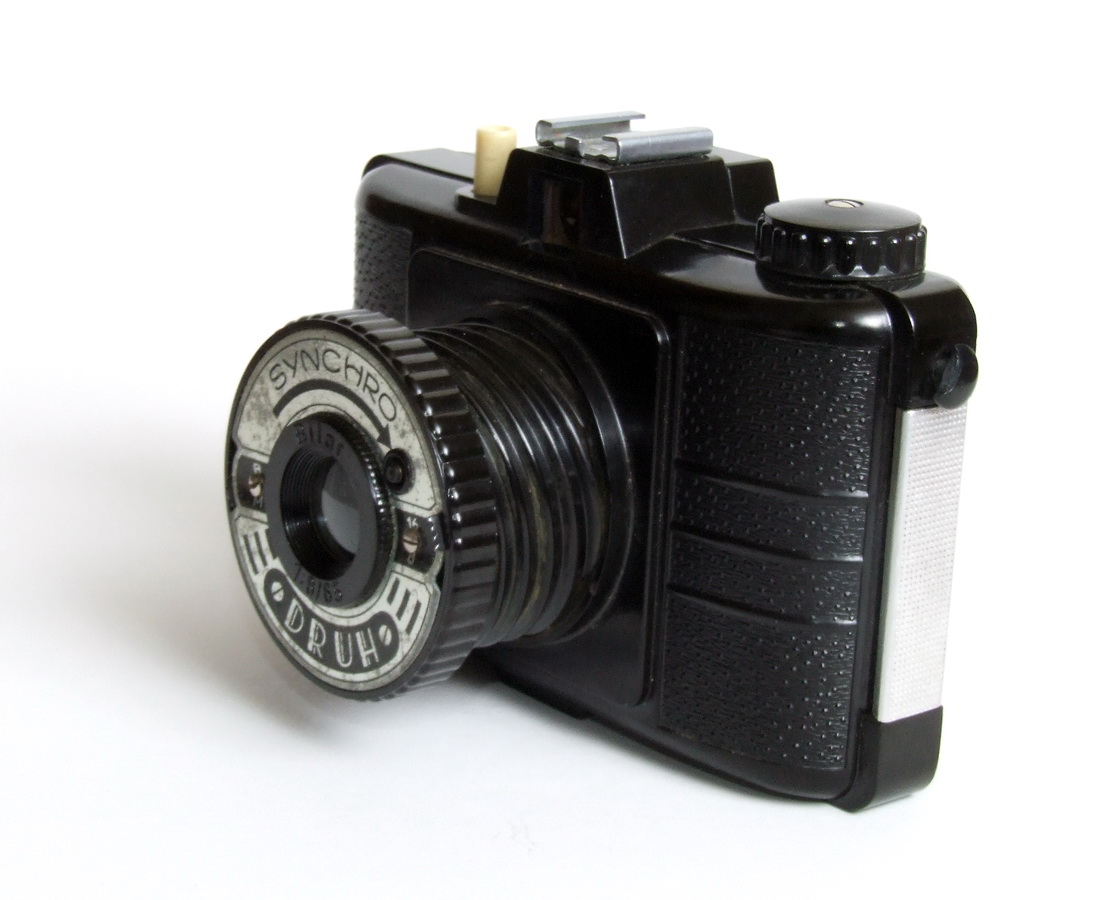

|Druh Synchro image by Süleyman Demir (Image rights)|
Druh Syncro is a medium format film viewfinder-like box camera made by WZFO (Warsaw Photo-optical Works = Warszawskie Zakłady Fotooptyczne), Brzozów, Poland and produced between c. 1956–60. Druh means Friend.
Druh wasn't an original Polish construction. It was a direct descendant of the Pouva Start, WZFO redesigned and more similar to the Yunkor from KMZ. Druh cameras had several finishes in their production time. Druh Synchro is a modernized version of Druh with accessory shoe and pc socket for a flash gun connection. There are also some cosmetic variations.
Specifications[edit | edit source]
- WZFO logo on the cold shoe
- Film 120 roll, picture size 6×6 cm, and 4.5×6 cm with a mask
- Lens: Bilar 65 mm f/1.8 periscope collapsible screw tube, filter thread
- Aperture: f/8 and f/16; setting: by a lever on front of the lens
- Focusing: fixed focus
- Shutter: simple spring rotary shutter, one speed 1/50 +B ; setting: by a lever on front of the lens, B and M (instant) , with synchro contact
- Cocking and Shutter release: by the same knob, press and release; on the top plate, with cable release socket
- Viewfinder: Optical reverse telescopic finder
- Winding knob: on the top plate
- Flash PC socket: on front of the lens-shutter barrel
- Self-timer: none

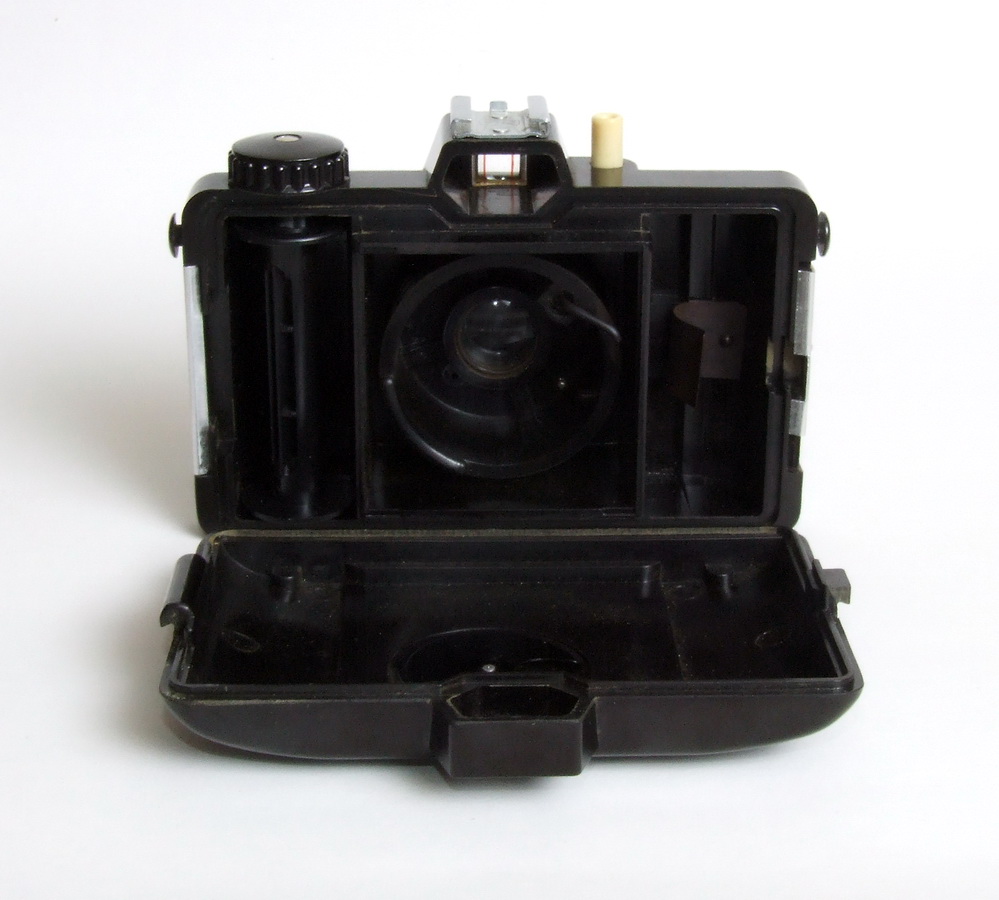

- Back cover: removable, opens by a latch on the right side of the camera, with two red windows for 6×6 and 4.5×6
- Tripod socket: 3/8"
- Strap knobs
- Body: bakelite; weight: 313 g
Notes and references[edit | edit source]
- McKeown's p.1019
